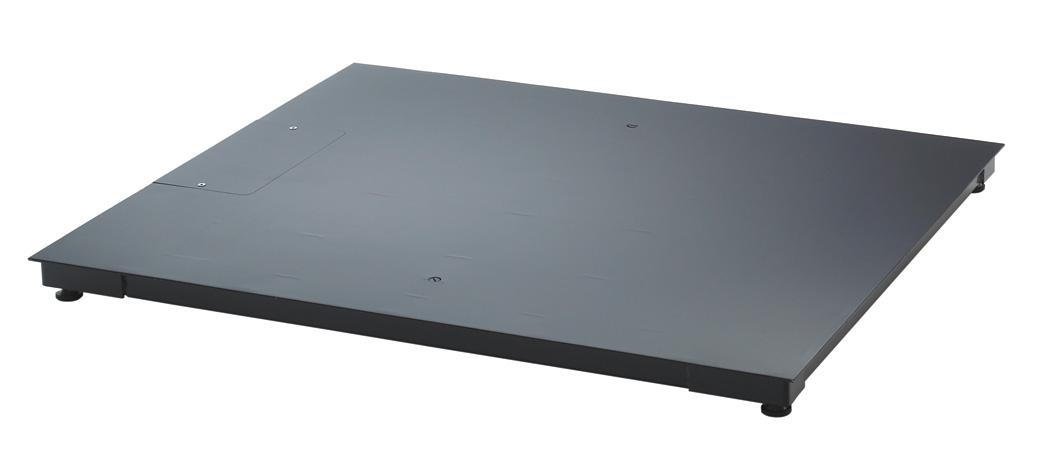

Multifunctional Floor Scale for Standard Dry Industrial Applications

• OHAUS VF Series is equipped with a T51P that has software for parts counting, dynamic weighing, percent weighing, checkweighing and display hold and meets traceability requirements.
• Four IP68 electro-polished stainless steel load cells that are laser-weld hermetically sealed and OIML approved are standard on all models.
• The floor-pit mount design and painted steel fixed decks with structural bracing provides versatility for portable or stationary placement in an above or below ground installation.

The OHAUS VF Floor and Pit Mount Series is a cost-competitive lineup of floor and pit mount scales that do not compromise on quality for dry industrial applications. Powered by four stainless steel IP68 hermetically sealed load cells that will withstand years of daily usage in industrial environments, these scales offer a unique combination of affordability, versatility and quality.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Display Hold

Display

Backlit liquid crystal display (LCD), 3 color checkweighing LEDs

Operation

Power cord (included) or 6 C (LR14) batteries (not included) or rechargeable battery (accessory sold separately)

Communication

Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.

Construction

ABS plastic indicator with reversible rear cover and painted steel mounting bracket, black painted steel platform, IP67 stainless steel junction box with top access, IP68 OIML R60 electro-polished stainless steel load cells, available pit frames, mounting plates, and ramps (accessories sold separately)

Design Features

150% overload protection
