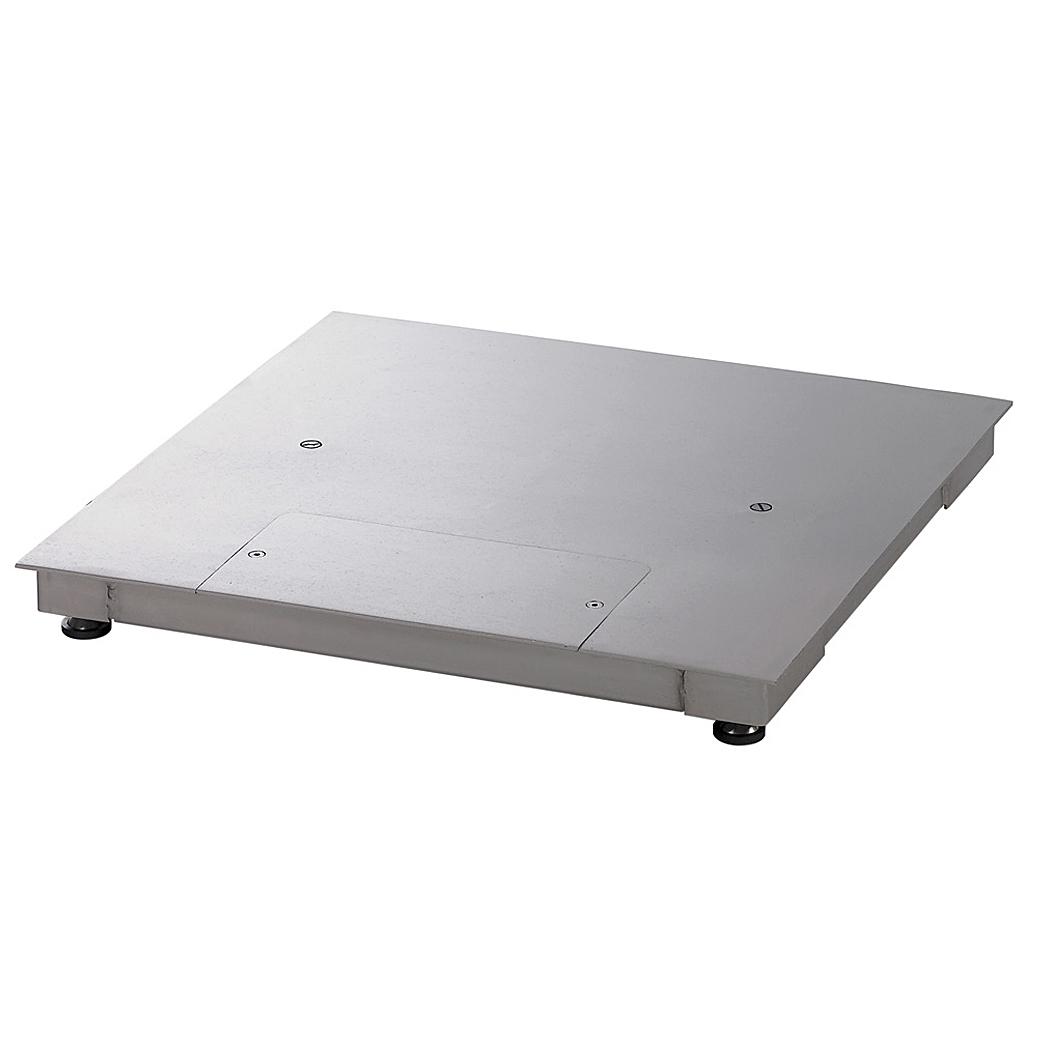

Multifunctional Stainless Steel Floor Scale for Standard Washdown Industrial Applications

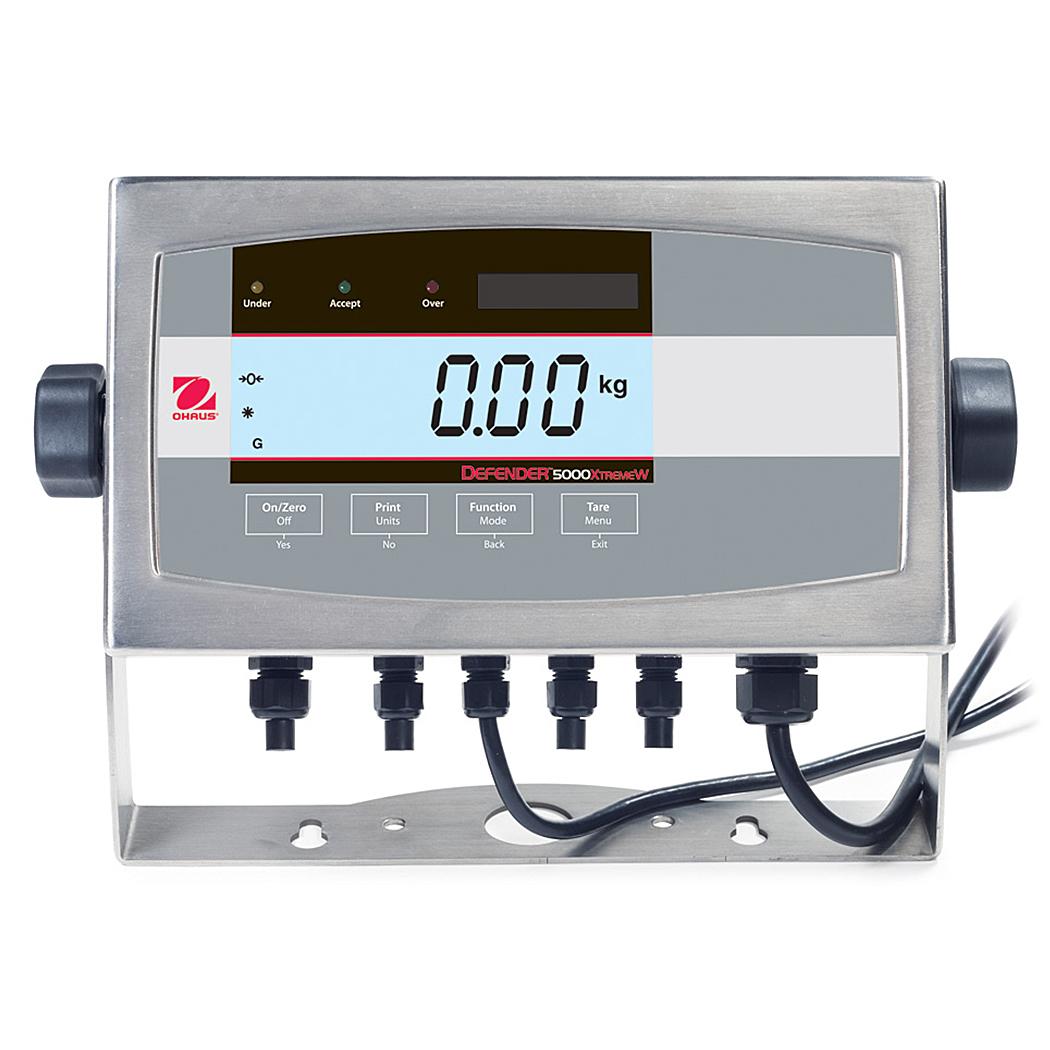

• OHAUS VF Series has a T51XW indicator that has software for parts counting, dynamic weighing, percent weighing, checkweighing, display hold and can meet traceability requirements.
• Four IP68 electro-polished stainless steel load cells that are laser-weld hermetically sealed and OIML approved are standard on all models.
• The combination of floor-pit mount design and bead blasted stainless steel fixed decks provide versatility for placement in an above or below ground installation.

The OHAUS VF Series of floor and pit mount scales is a solid lineup of stainless steel scales that do not compromise on quality. Powered by four stainless steel IP68 hermetically sealed load cells that will withstand years of daily usage in industrial environments, these scales offer a unique combination of affordability, versatility and quality.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Display Hold

Display

Backlit liquid crystal display (LCD), 3 color checkweighing LEDs

Operation

Power cord (included) or rechargeable battery (accessory sold separately)

Communication

Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.

Construction

IP66 stainless steel indicator with hinged front cover, bead-blasted stainless steel platform, IP67 stainless steel junction box with top access, IP68 OIML R60 electro-polished stainless steel load cells, pit frames, ramps and foot plates (accessories sold separately)

Design Features

150% overload protection
