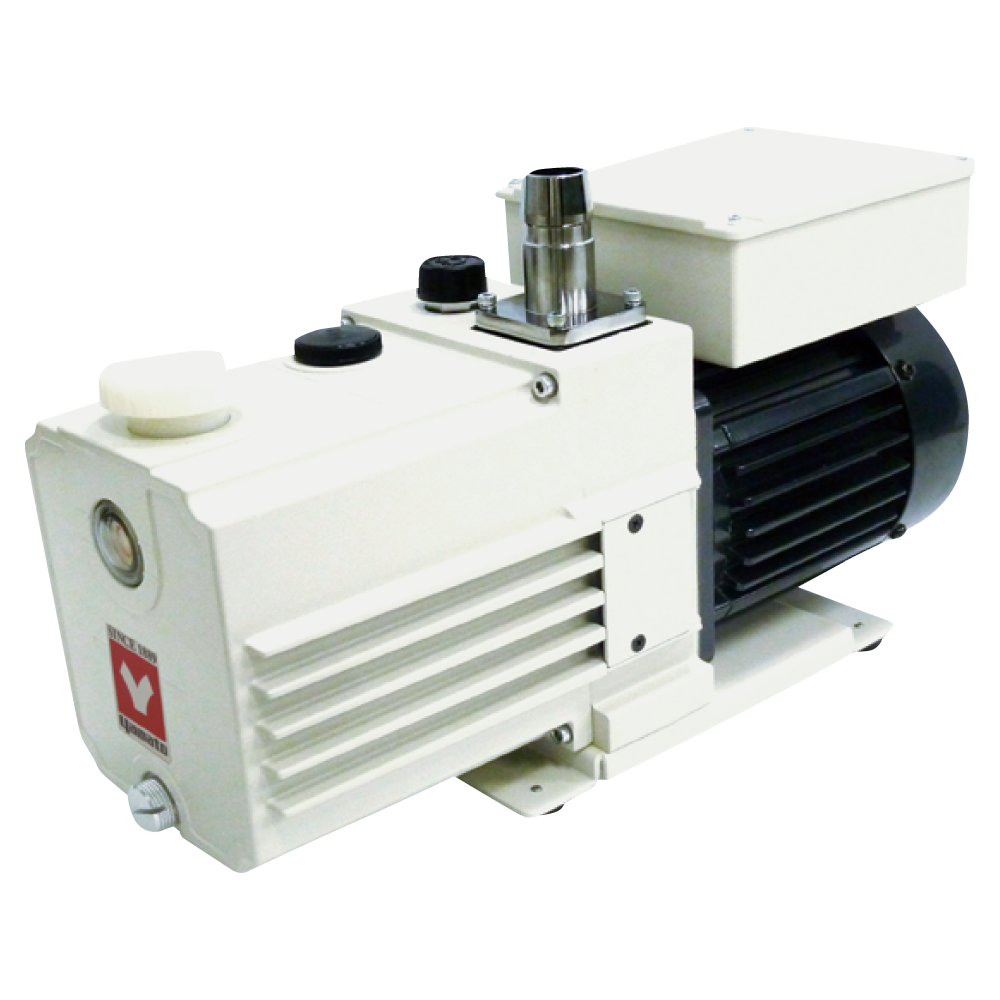

Vacuum oil pump
Brand: Yamato
Model: PD series, PQ series and PX series
- Description
PD Series
Small Oil Rotary Vacuum Pump Standard Available for Various Applications
Built-in thermal protector
Built-in thermal protector, continuous operation is safe.
Oil backflow prevention valve
It is with an oil check valve.
Compact and light weight thanks to direct connection to the motor.
Features
Safe for continued operation with the integrated thermal protector.
Two-step exhaust system to attain high level vacuum. (Model PD)
Easy to transport. Also ideal for embedding into a unit.
Equipped with an oil stop valve. (PD53/139/204)
Large oil level gauge allows easy check of dirt. (PD53/PD139/204)
Supports multi voltages of 100 to 120V and 200 to 240V. (PD139/204)
PQ series
Vacuum Pumps, Compact
Compact and light weight thanks to direct connection to the motor.
Features
Integrated check valve below the inlet port and pump internal atmospheric release mechanism for backflow prevention.
Magnet coupling produces low noise and results to longer lifetime of shaft seal.
Safe for continued operation with the integrated thermal protector.
Easy to transport. Also ideal for embedding into a unit.
Magnet coupling for no oil leakage from shaft seal and realized longer lifetime. Integrated check valve below the inlet port for backflow prevention. (PQ30/100)
Vacuum Pumps, Compact (PX Series)
Long Life and for Chemical Use
Features
Usage of vacuum pumps to suction special gases has been increasing for using such gases in the chemical industry, the semiconductor industry, or general science applications. Conventional vacuum pumps will suffer significant shortening of service life due to corrosion or excessive wear on parts contact with such special gases causing troubles. PX series vacuum pumps are of chemical type and employ corrosion proof and wear-resistant materials for parts that may contact with gases.
Surfaces of pump casing and major structural parts are specially finished. O rings and other chemical parts are made of fluorine-based material and other parts employ corrosion proof materials.
The exhaust port employs a KF-25 quick coupling flange (ISO type) and its connection/removal to and from a pipe necessary for exhausting toxic and other gasses is easy. A KF-25 quick coupling flange can be installed onto the exhaust port as well. (Optional)
